Split Case Pumps

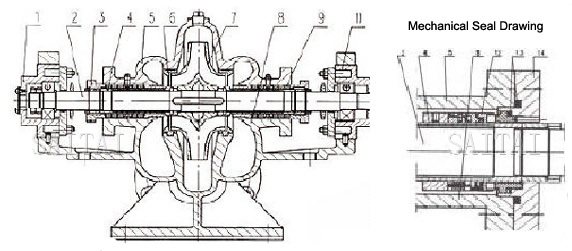

A. Split Case Pumps Sectional View:

Split Case Pumps Sectional View
Split Case Pumps Sectional View

1, Bearing Housing 2, Shaft  3,Packing Gland  4,Shaft Sleeve  5,Upper Casing  6,Wearing Ring  7,Impeller 8, Lower Casing
9, Packing  10,Bearing Housing A 11,Coupler 12, Mechanical Seal 13,"O"Ring 14, Mechanical Seal Gland

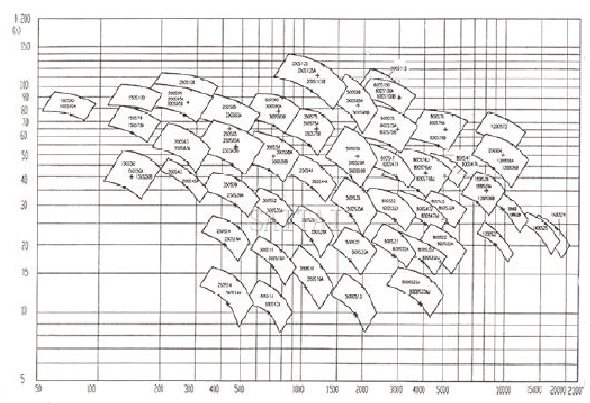

B. Split Case Pumps Performance Range:

Split Case Pumps Performance Range
Split Case Pumps Performance Range

Split Case Pumps Related Products
