10l/S Xbc Type Diesed Engine Fire Pump

RELATED PRODUCTS

5L/S Series 10L/S Series 15L/S Series 20L/S Series 25L/S Series 30L/S Series
35L/S Series40/45 L/S Series 50/55 L/S Series 60/65 L/S Series 70/80 L/S Series

Performance Data

Type Capacity
(L/S)		 Pd
Pressure
(MPa) 		Motor Power
KW		 n
Speed
(r/min) 		Efficiency
(%)		 (NPSH)r
(m)
XBC2.9/10-65 10 0.29 8.8 1500 66 2.1
XBC4.1/10-65 0.41 1800
XBC4.0/10-65 10 0.41 13.8 1500 66 2.1
XBC5.7/10-65 0.57 1800
XBC5.0/10-65 10 0.50 13.8 1500 66 2.1
XBC7.2/10-65 0.72 1800
XBC6.1/10-65 10 0.61 13.8 1500 66 2.1
XBC8.8/10-65 0.88 1800

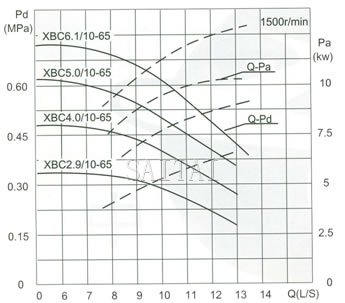

Capacity:10L/S Pressure:0.29-0.88MPa
Capacity:10L/S Pressure:0.29-0.88MPa
Structure Of 10l/S Xbc Type Diesed Engine Fire Pump
Structure Of 10l/S Xbc Type Diesed Engine Fire Pump

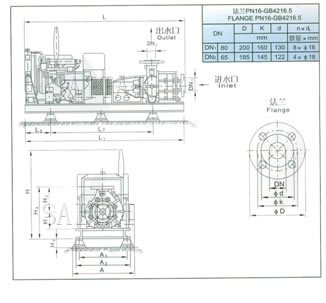

10l/S Xbc Type Diesed Engine Fire Pump Mounting Dimensions

Type H1 H2 H3 H4 H L L1 L2 L3 A1 A2 A Vibration Isolator Weight
(KG)
Type NO.
XBC2.9/10-65
4.4		 200 275 65 555 620 1099 1091 671 155 385 485 800 JGD2 4 277
XBC4.0/10-65
5.7		 200 275 65 555 880 1645 1440 1025 155 445 505 - JGD 2 4 459
XBC5.0/10-65
7.2		 200 275 65 555 880 1723 1518 1103 155 445 505 - JGD2 4 481
XBC6.110-65
8.8		 200 275 65 555 880 1801 1596 1181 155 445 505 - JGD 2 4 503

10l/S Xbc Type Diesed Engine Fire Pump Related Products

Next:15l/S Xbc Type Diesed Engine Fire Pump

Catalog:Fire Pumps
